Top quality Fiber Spot Welder Soldering laser welding machine

Brand Name : HM

Model Number : HM-WLD

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Delivery Time : 7 work days

Packaging Details : 100*80*90

Usage : Metal welding

Wavelength : 1080nm

Laser Source Brand : Raycus, Raycus

Product name : 500w 800w 100w Laser Welding Machine

Laser power : 800w/1000w/1500w

Laser welding depth : 6mm

Laser wavelength : 1080nm

Cooling method : Water cooling

Contact Now

Our welding gun

* It perfectly replaces the traditional argon arc welding, electric welding is used for welding stainless steel, iron, aluminum and other metal materials
 * Weight is 800G * Light weight, small size, human body design, comfortable grip * Easy to operate and low requirements for operators

 * Fully enclosed structure with built-in water and wind road
 * Strong anti-interference configuration of 500W-2000W laser
 * Beautiful weld fast welding speed no discoloration no need for later grinding
 * The safety lock touched the light
 *Strong anti-interference

 * Equipped with self-developed control system

Top quality Fiber Spot Welder Soldering laser welding machine

NO	Item	Technology parameters
1	Machine model	Hand held fiber laser welding machine
2	Power	500w/800w/1000w/1500w/2000w
3	Laser wavelength	1070NM
4	Fiber length	Standard: 10M. Maximum:15M
5	Working model	Continuous/Modulation
6	Speed range of welding machine	0--120mm/s
7	Chiller	Industrial cooling water machine
8	Working environment temperature	15ºC--35ºC
9	Humidity range of working environment	<70% NO condensation
10	Suggestion on welding thickness	0.5--3mm
11	Welding gap requirements	≤0.5mm
12	Voltage	110v/220v/380v
13	Weight	About 400KG
14	Warranty	2 years

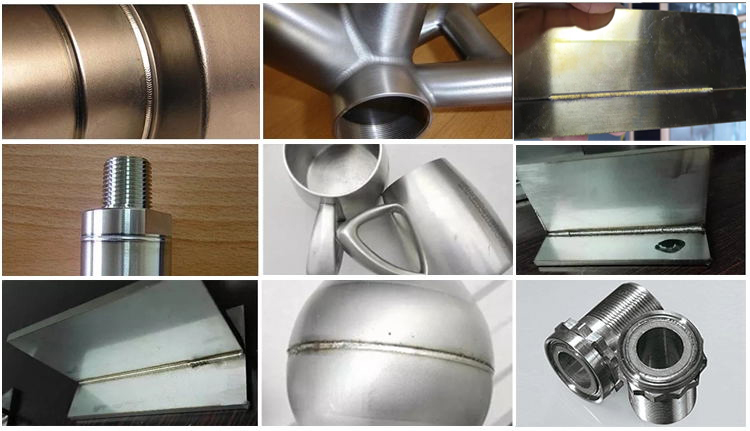

Welding penetration data
Power ↓ penetration depth→	Stainless steel	Carbon steel	Galvanized sheet
500w	0.5--0.8mm	0.5--0.8mm	0.5--0.8mm
800w	0.5--1.2mm	0.5--1.2mm	0.5--1.0mm
1000w	0.5--1.5mm	0.5--1.5mm	0.5--1.2mm
1500w	0.5--2.0mm	0.5--2.0mm	0.5--1.8mm
2000w	0.5--3.0mm	0.5--3.0mm	0.5--2.5mm

1000W/1500W/2000W High-quality hand-held fiber laser welding machine

Product Introduction
 The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple
 operation, beautiful welding beam, fast welding speed, and no consumables. Welding in a thin stainless steel sheet, iron sheet,
 galvanized sheet, and other metal materials can perfectly replace the traditional argon arc welding, electric welding, and other
 processes.

 Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel
 doors and windows guardrail, distribution boxes, stainless steel home, and other industries complex and irregular welding process.

Product Advantage1) Easy to operate
 2) Firmly Welding
 3) High welding speed
 4) Less consumables
 5) Smooth and beautiful joint
 6) Safer and more environmentally friendly
 ——Reduces the subsequent grinding process and saves time and cost.
Product IntroductionThe machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple
 operation, beautiful welding beam, fast welding speed, and less consumables. Welding in a thin stainless steel sheet, iron sheet,
 galvanized sheet, and other metal materials can perfectly replace the traditional argon arc welding, electric welding, and other
 processes.

 Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel
 doors and windows guardrail, distribution boxes, stainless steel home, and other industries complex and irregular welding process.


Top quality Fiber Spot Welder Soldering laser welding machine Images
